3M Aluminum Tapes
Details
| Product Code | Carrier | Adhesive Type | Color | Total Thickness | Adhesion | Tensile Strength | Elongation (%) | Temperature Resistance | Where to Use |

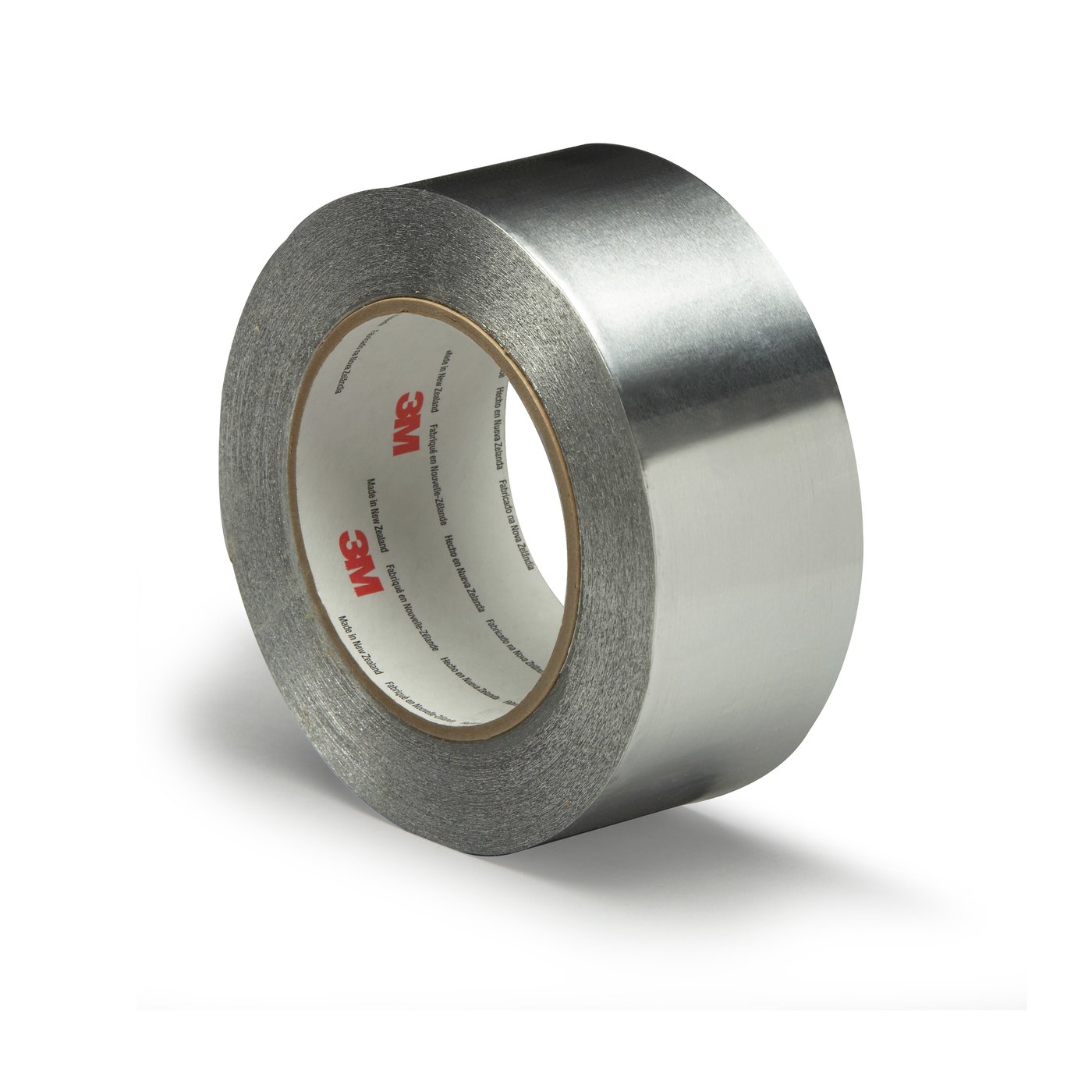

| 3M 425 | Al.Folio (70 µ) | Acrylic | Metallic Gray | 120 mic. | 51 N/100 mm | 525 N/100 mm | 8 | 149 | This thermally conductive tape helps disperse the heat and, increases the heating and cooling efficiency to protect heat sensitive materials. Used for masking to protect the surfaces when removing paint as it is resistant to chemicals and other chemical applications. Resistant to exposures to flame, weather conditions, moisture and UV rays. This tape reflects heat and light, protects surfaces and, increase the lighting efficiency. Suitable for use on curved and rough surfaces. Ideal for heat protection, heat reflection, chemical masking, lighting improvement, chemical protection, stitches, sealing and paint removal applications. |
| 3M 420 | Lead (120 µ) | Rubber | Lead | 170 mic. | 49 N/100 mm | 350 N/100 mm | 12 | 106 | This tape offers electrical and thermal conductivity; is resistant to acids and bases; resistant to flame and moisture, offers weather resistant and, is resistant to infrared decomposition and chemicals. Used for x-ray marking, metal coating and electrical conduction. Highly intense, resistant to acids and flexible. Lined. |
| 3M 1517CW | Al. Folio | Acrylic | Grey | 60 mic. | 14 N/25 mm | 53 N/25mm | 4 | 121 | Manually torn. Adhesion suitable for cold weathers. HVAC insulation. Used for reinforcement, coating, insulation, sealing, stitches and binding. Vapor-proof for reinforced glass fiber, mineral wool thermal isolation and FSK systems. |

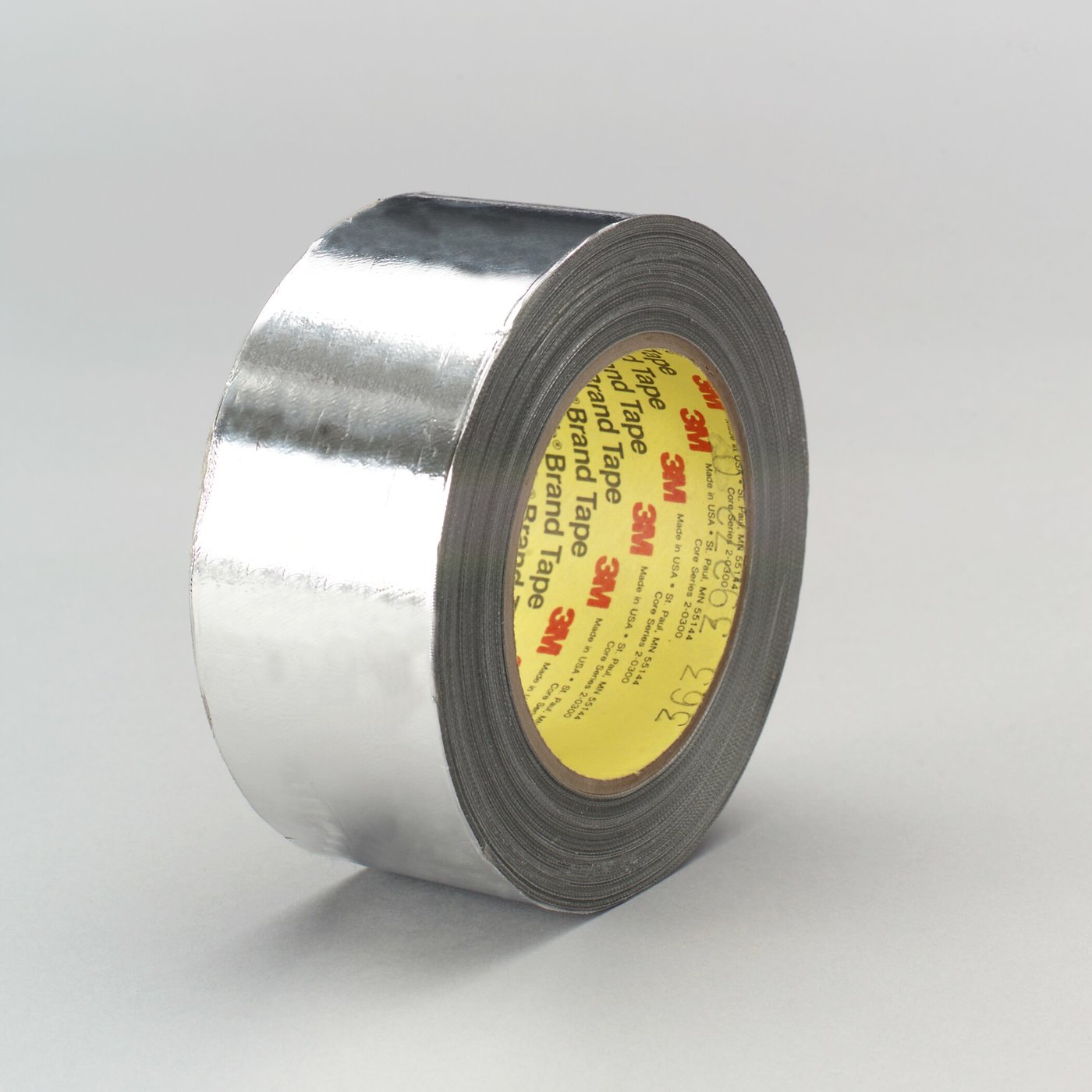

| 3M 363 | Al.Folio (90 µ) | silicone | Silver | 190 mic. | 73 N/ 100 mm | 2364 N/100 mm | 7 | 316 | A strong and flexible aluminum tape reinforced with glass fiber, that is resistant to high temperatures and reflects the heat. As it is lightweight and flexible, it is easily applicable on rough surfaces. Usable for tough duties as it is resistant to perforation and tearing. Used for the following purposes: Automotive, Space, HVAC, Equipment, Army, Public, Defense, Maritime, Metal Finishing, Electronics, Trailers, Construction, and General Industrial Purposes. |
| 3M 2542 | Al.Folio | Visc. Polymer | Silver | 250 mic | 72 N/100 mm | 1102 N/100 mm | 7 | 80 | Designed for applications in the field of sound, vibration damping, and for vibrating panels and supporting elements. This support combination of viscoelastic polymer and aluminum folio makes it unique for controlling the resonance. |
Use Area
Transportation
Automotive Supply Industry
Stone and Soil Based Industry
Marine
Mining Industry
Chemicals and Petroleum
General Industry
White Goods and Electronics
Electronics
White Goods
Forestry Products and Furniture
Rail Systems
Life and Health Services
Textile
Metal Industry
Paper and Printing
Energy
Construction Industry
