Lifeline Systems

3M Lifeline Systems

Lifeline Systems

3M Lifeline Systems

Details

3M ROOFSAFE

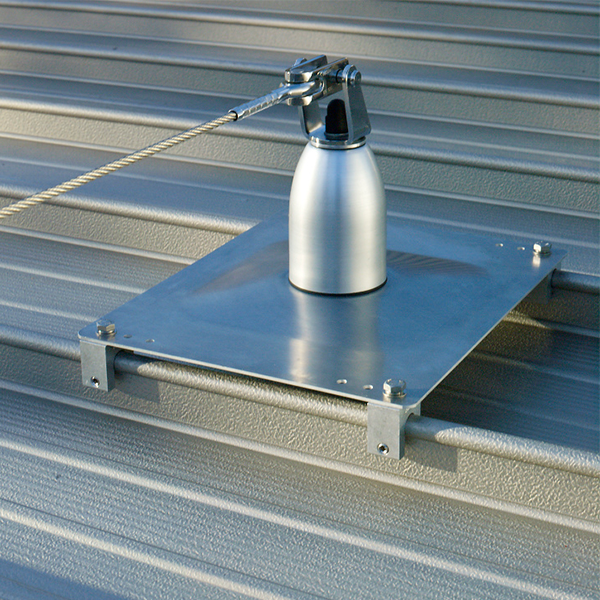

3M Roofsafe lifeline system is a fall arrester system designed for sheet metal roofs.

The auxiliary supports of the system are attached on the top of the panel sheet with an arrangement of once for every 15 meters by means of leak-proof rivets.

The entire components of the system are manufactured using weldless techniques so that they could pass all stringent tests.

The system could be safely used by 4 people at the same time.

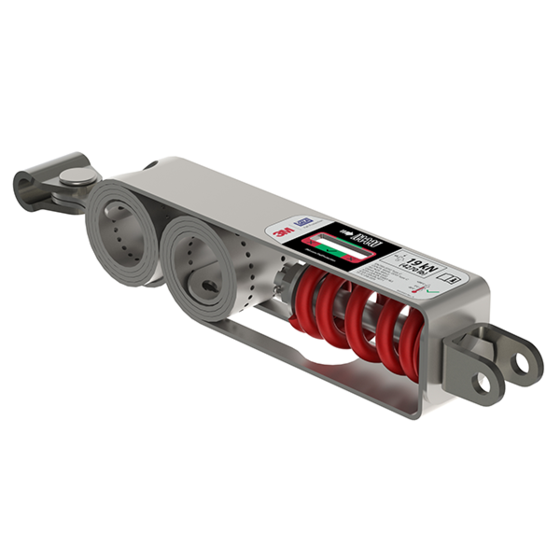

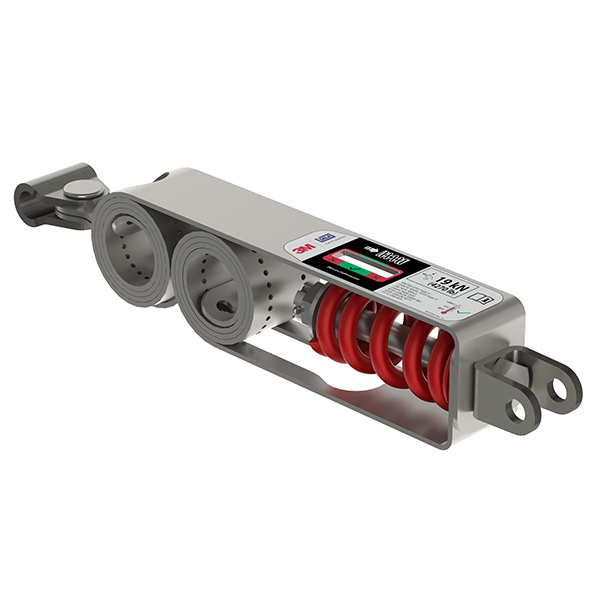

The strong shock absorber will keep the force on the system at the time of falling below 6kN and prevent the force from harming the structure.

3M Roofsafe lifeline system meets the requirements as set forth for the following standards: EN795:2012 and CEN/TS 16415.



3M 8MM

3M 8mm is designed to create a permanent anchorage point with a fixed horizontal lifeline system in working conditions where there is a risk of fall.

The system allows for not more than 4 users, and it is possible that all the users work in a single area at the same time if need be.

This makes it possible that the entire workforce focuses on a single specific area.

316 quality stainless steel components offer a great level of corrosion resistance.

Applicable in many areas such as walls and floors, loading areas, crane walking roads etc.

 The system allows for a space of 60 meters for 1 user and, for a space of 30 meters for more than one user in case of overhead applications.

The shock absorbing component allows for the measurement of the tensile level on the line.

Standard:

EN795:2012 Type C

CEN TS16415:2013 Type C



3M CABLOC

3M Cabloc lifeline system is designed for safe working on vertical platforms.

There is a fall indicator on the bottom anchorage of the system.

There are stainless and galvanized options.

The saddle always follows the user and, holds the user in case of a fall.

Offers constant mobility through automatic shifting rope guides.

Standard: EN353-1:2014+A1:2017

Use Areas
General Industry
Construction Industry
Transportation
Rail Systems
Automotive Supply Industry
White Goods And Electronics
Life and Health Services
Textile
Stone and Soil Based Industry
Metal Industry
Marine
Electronics
White Goods
Mining Industry
Chemicals and Petroleum
Paper and Printing
Forestry Products and Furniture
Energy
