3M Aluminum Tapes

Aluminum Tapes

3M Aluminum Tapes

Details

Product Code	Carrier	Adhesive Type	Color	Total Thickness	Adhesion	Tensile Strength	Elongation (%)	Temperature Resistance	Where to Use
3M 425	Al.Folio (70 µ)	Acrylic	Metallic Gray	120 mic.	51 N/100 mm	525 N/100 mm	8	149	This thermally conductive tape helps disperse the heat and, increases the heating and cooling efficiency to protect heat sensitive materials. Used for masking to protect the surfaces when removing paint as it is resistant to chemicals and other chemical applications. Resistant to exposures to flame, weather conditions, moisture and UV rays. This tape reflects heat and light, protects surfaces and, increase the lighting efficiency. Suitable for use on curved and rough surfaces. Ideal for heat protection, heat reflection, chemical masking, lighting improvement, chemical protection, stitches, sealing and paint removal applications.
3M 420	Lead (120 µ)	Rubber	Lead	170 mic.	49 N/100 mm	350 N/100 mm	12	106	This tape offers electrical and thermal conductivity; is resistant to acids and bases; resistant to flame and moisture, offers weather resistant and, is resistant to infrared decomposition and chemicals. Used for x-ray marking, metal coating and electrical conduction. Highly intense, resistant to acids and flexible. Lined.
3M 1517CW	Al. Folio	Acrylic	Grey	60 mic.	14 N/25 mm	53 N/25mm	4	121	Manually torn. Adhesion suitable for cold weathers. HVAC insulation. Used for reinforcement, coating, insulation, sealing, stitches and binding. Vapor-proof for reinforced glass fiber, mineral wool thermal isolation and FSK systems.

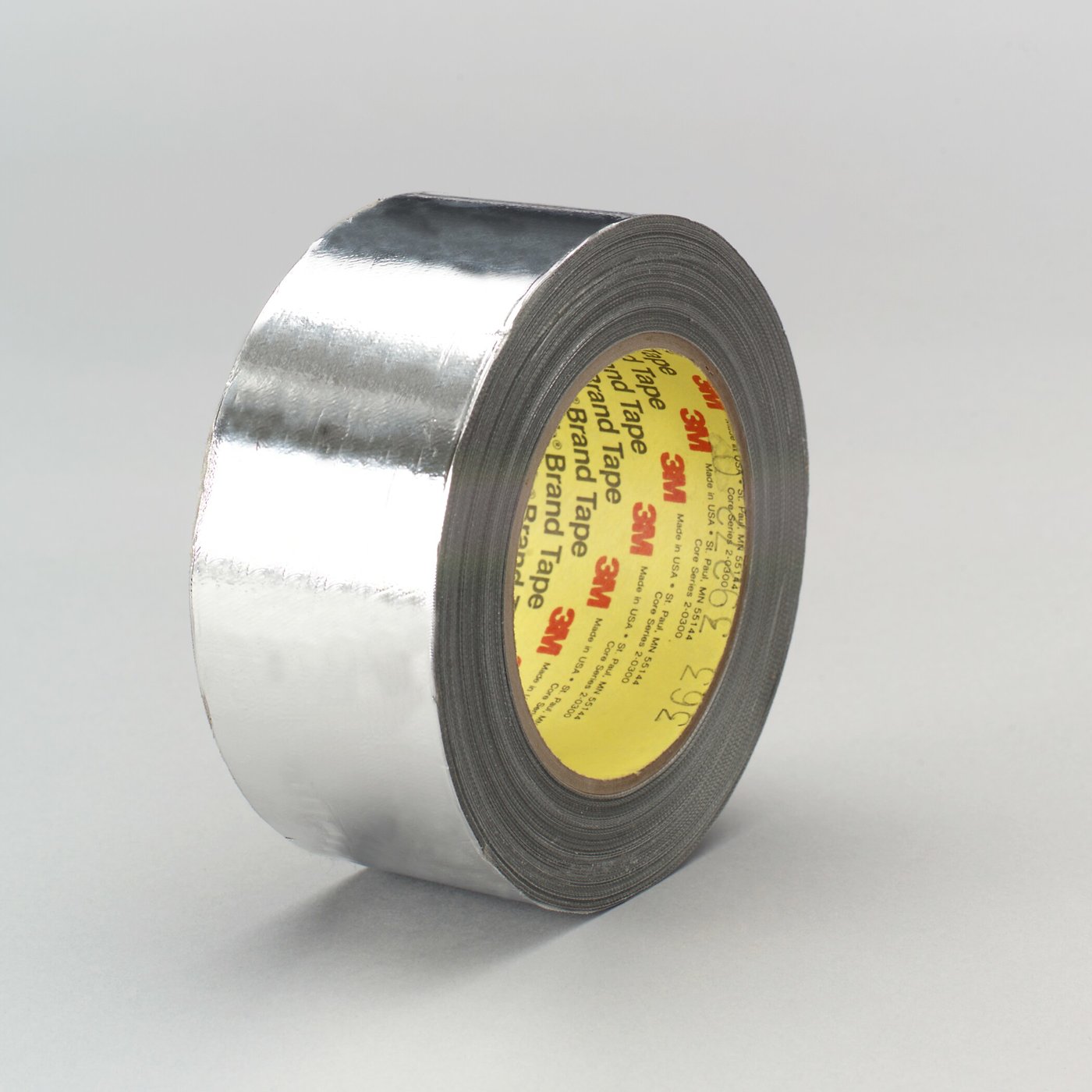

3M 363	Al.Folio (90 µ)	silicone	Silver	190 mic.	73 N/ 100 mm	2364 N/100 mm	7	316	A strong and flexible aluminum tape reinforced with glass fiber, that is resistant to high temperatures and reflects the heat. As it is lightweight and flexible, it is easily applicable on rough surfaces. Usable for tough duties as it is resistant to perforation and tearing. Used for the following purposes: Automotive, Space, HVAC, Equipment, Army, Public, Defense, Maritime, Metal Finishing, Electronics, Trailers, Construction, and General Industrial Purposes.
3M 2542	Al.Folio	Visc. Polymer	Silver	250 mic	72 N/100 mm	1102 N/100 mm	7	80	Designed for applications in the field of sound, vibration damping, and for vibrating panels and supporting elements. This support combination of viscoelastic polymer and aluminum folio makes it unique for controlling the resonance.
